Model : ZXRHF0010
Material ; PVC , ABS or PET etc
Frequency : 13.56Mhz
Chip : FM11RF08 (F08 )
Size: 85.5*54mm , 0.84mm thickness
Color : offset printing full color or white without printing
Certificate ;RoHS
MOQ :1000pcs
Free samples testing is available
Wide range of application:
FRID has wide application: Highway tolls, Car parking, Pigeon ring, Animal ear tag, Hotel card, Restaurant
consumption, Library card, Staff photo id card, Patrol, Fairground, Electronoic bills, Metro Card, Bus
card, Freight transport, Bath center, swimming tool and hot spring center membership card, IT equipment
management, Internet bar.

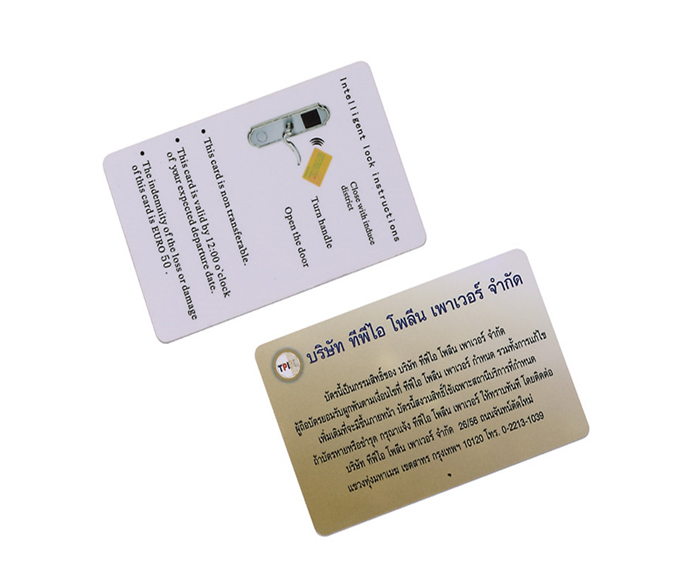

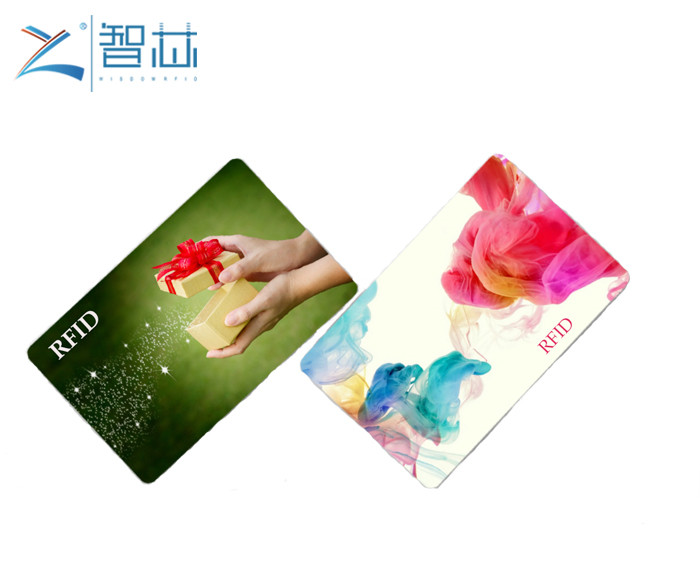

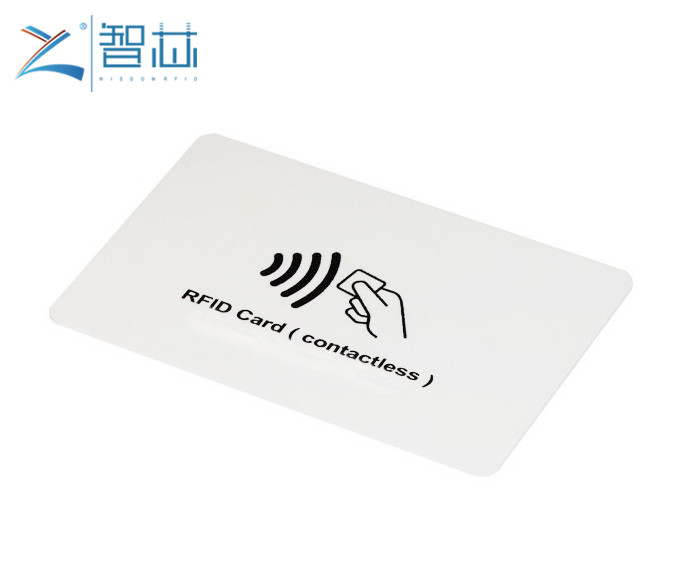

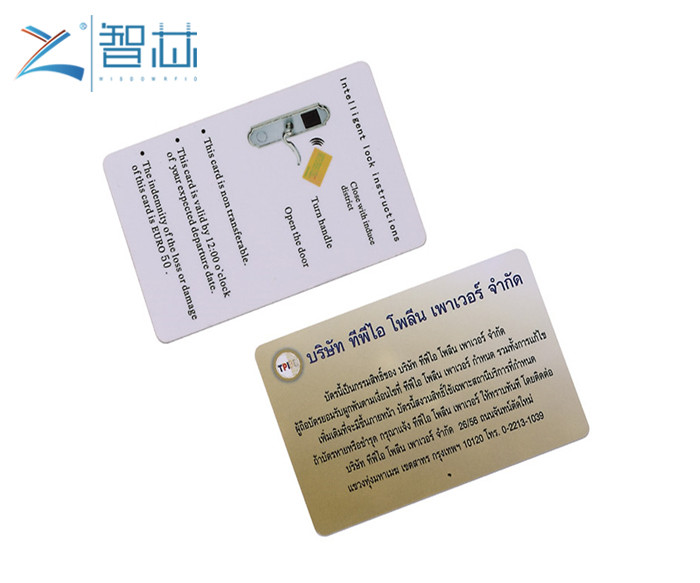

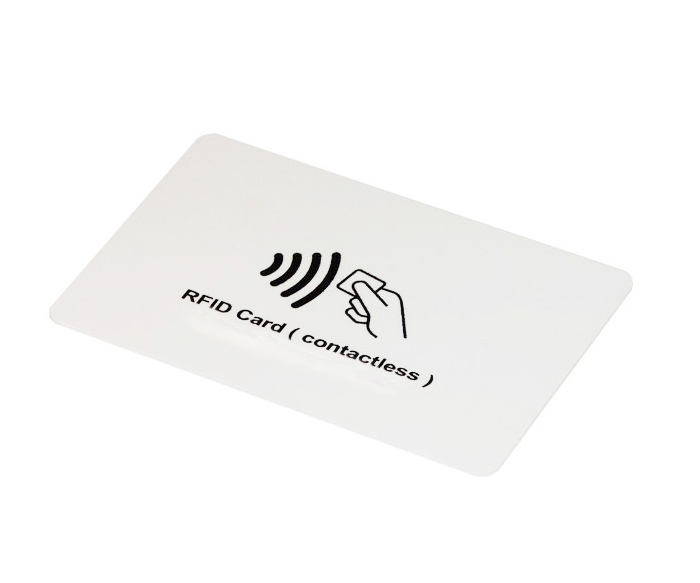

Statement: Pictures above only show the product , the intellectual property rights of the logo owned by their trademark companies.
FM11RF08 is the contactless card IC according to ISO 14443 Type A development by China and this device has 1K x 8bits EEPROM organizaion ,The maximum communication range between the reader antenna and contactless card is approximately 10cm . It will fully compatible NXP MIFARE Classic@ 1K chip and competitive price in finished cards . different between them will f08 card has 2 sets access key ( KEY A and KEY B ) and orginal NXP MIFARE Classic @1k chip only 1 access key . All FM11RF08 RFID cards can full color printing ,serial number and barcode ,etc .
| Product | FM11RF08 13.56MHz Compatible MIFARE 1K RFID Cards |
| Material | PVC, ABS, PET |
| Size | Stander size(credit card size):85.5*54*0.84mm or customized |
| Surface Finishing | Glossy/Matte/Frosted/Transparent |
| Printing | thermotransfer , tampon , silkscreen |
| Chips Option | FM11RF08 |
| Memory | 1024X 8bits |
| Mechanical Stability (Bending ,Torsion) | according to ISO 14443A |
| Operating Temperature | -25°C to +50°C (according to ISO 7810) |
| Storage Temperature | -25°C to +50°C (according to ISO 7810) |
| Operating Frequency | 13.56MHz |
| Typical programming cycles(at +25°C) | 100,000 |
| Data retention time (at +55°C ) | > 10 years |
| Reading distance | 3-8cm |
| Personalization | Serial number, barcode, magnetic stripe, QR code, encoding, etc |
| Package | In smaller white box, then in carton |
| Shipment | By Express, by air, by sea |
| Application | event tickets , hotel card ,door control access ,transportation ,etc .. |

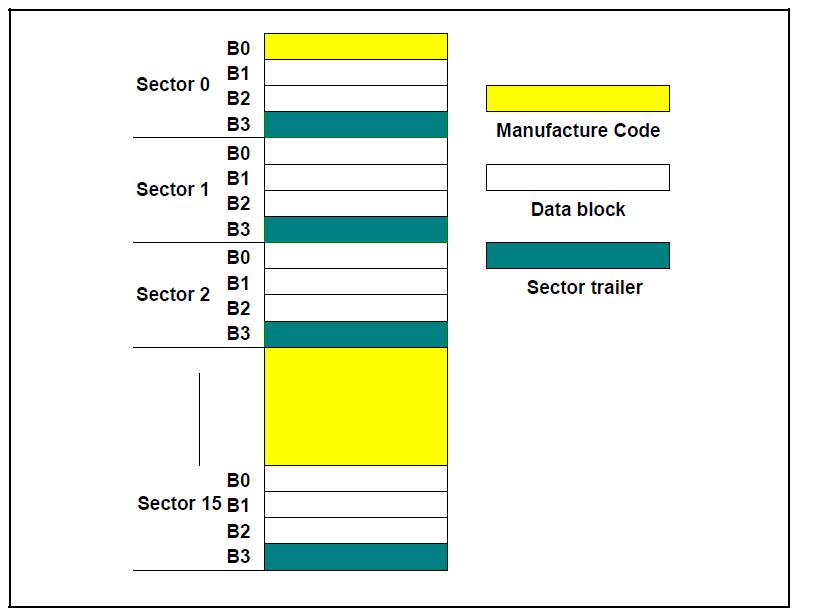

FM11RF08 Chip Memory Organnization
Feature :
compliant with ISO/IEC 14443-A
contactless transmision of data and supply (no battery needed)
operating frequency ：13.56MHz
Fast communication baud rate : 106bit/s
operating distance ; up to 100mm (depending on antenna geometry）
half duplex communication protocol using handshake
encryption algorithm compatible with M1 standard
typical transaction time ; < 100ms
EEPROM
1024x8bits EEPROM memory
organized in security separated 15 sectors supporting multi-application use
user flexible defines assess conditions for each memory block .
High security
mutual three pass anthentication
high security level data communicaation
each sector has its own two secret files for systems using key hierarchies.
High Reliability
endurance : 100 ,000 cycle
data retention ： 10 years
