Model : ZXRHF0002
Material ; PVC , ABS or PET etc
Frequency : 13.56Mhz
Chip : NXP MIFARE Classic®4K
Size: 85.5*54mm , 0.84mm thickness
Color : offset printing full color or white without printing
Certificate ;RoHS
MOQ :500pcs
Free samples testing is available
Functional Specification :
1: FEATURES
Contactless transmission of data and supply energy (no battery needed)
Operating distance : Up to 100mm (depending on antenna geometry)
Operating frequency ; 13.56Mhz
Fast data transfer ; 106k bits/s
High data integrity ; 16 bit CRC ,parity , bit coding ,bit counting
True anticollision
Typical ticketing transaction ;< 100ms(including backup management)
2: EEPROM
4Kbyte , organised in 32 sectors with 4 blocks and 8 sectros with 16 blocks (one block consists of 16 bytes)
User definable access conditions for each memory block
Data retention of 10 years
Write endurance 100,000 cycels
3: Security
Mutual three pass authentication (ISO/IEC DIS9798-2)
Data encryption on RF-channel with replay attack protection
Individual key set per sector(per application) to support multi-application with key hierarchy
Unique serial number for each device
Transport key protects access to EEPROM on chip delivery

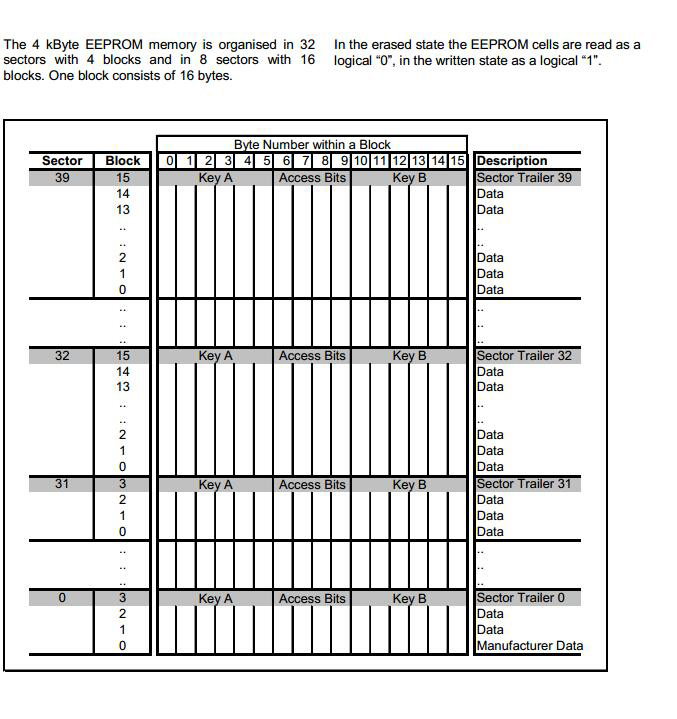

4: Memory Organisation
What can our products do?
You may need our products if you are related with RFID Solution company, NFC solution company, Security
Company, Music or festival event company, IOT company, Smart Card manufacturer, RFID card or NFC card
company, NFC Tag company, rfid pet tag company, RFID System company, RFID Solution provider,etc.
Statement: Pictures above only show the product , the intellectual property rights of the logo owned by their trademark companies.
Full color 13.56mhz nxp mifare classic®4k rfid s70 card is also kind of contactless rfid card and large memory and sectors can work with different application you need , two different keys for each sector support system using key hierarchies .For true anticollision function allows to operate more than one card in the field simultaneously .The anticollision algorithm selects each card individually and ensures that the exexution of a transaction with a selected card is performed corectly without data corruption resultiong from other cards in the field .Shenzhen Zhixin RFID Tag Co.,Ltd is professional rfid products manufacturer and offers rfid card , MIFARE Classic®cards ,rfid label ,rfid wristband . More details and good price please contact us without any hestitate .
| Product | Full Color 13.56Mhz NXP MIFARE Classic 4K RFID S70 Card Supplier |
| Material | PVC, ABS, PET |
| Size | Stander size(credit card size):85.5*54*0.84mm or customized |
| Surface Finishing | Glossy/Matte/Frosted/Transparent |
| Printing | Without printing, with lamination overlay |
| Chips Option | NXP MIFARE Classic®4K NXP MIFARE Classic®1k ,MIFARE® DESFire® 2K/4K/8K MIFARE Plus® S 2K / S 4K ,MIFARE Plus® X 2K / X 4K MIFARE Plus® X 2K / X 4K,MIFARE Ultralight® ICODE® SLIX, ICODE® SLIX-S, ICODE® SLIX-L, ICODE® SLIX 2 NTAG® 213,NTAG® 215,NTAG® 216 are available |
| Memory | 4k byte , 1Kbyte ,2Kbyte ,8k byte . 144bytes , etc |
| Reading distance | 3-8cm |
| Personalization | Serial number, barcode, magnetic stripe, QR code, encoding, etc |
| Package | In smaller white box, then in carton |
| Shipment | By Express, by air, by sea |
| Application | Door control access , identification , hotel card , member card etc .. |
Functional Specification :
1: FEATURES
Contactless transmission of data and supply energy (no battery needed)
Operating distance : Up to 100mm (depending on antenna geometry)
Operating frequency ; 13.56Mhz
Fast data transfer ; 106k bits/s
High data integrity ; 16 bit CRC ,parity , bit coding ,bit counting
True anticollision
Typical ticketing transaction ;< 100ms(including backup management)
2: EEPROM
4Kbyte , organised in 32 sectors with 4 blocks and 8 sectros with 16 blocks (one block consists of 16 bytes)
User definable access conditions for each memory block
Data retention of 10 years
Write endurance 100,000 cycels
3: Security
Mutual three pass authentication (ISO/IEC DIS9798-2)
Data encryption on RF-channel with replay attack protection
Individual key set per sector(per application) to support multi-application with key hierarchy
Unique serial number for each device
Transport key protects access to EEPROM on chip delivery
