Model : ZXRHF0009
Material ; PVC , ABS or PET etc
Frequency : 13.56Mhz
Chip : Ti-tag 2K
Size: 85.5*54mm , 0.84mm thickness
Color : offset printing full color or white without printing
Certificate ;RoHS
MOQ :1000pcs
Free samples testing is available
Wide range of application:
FRID has wide application: Highway tolls, Car parking, Pigeon ring, Animal ear tag, Hotel card, Restaurant
consumption, Library card, Staff photo id card, Patrol, Fairground, Electronoic bills, Metro Card, Bus
card, Freight transport, Bath center, swimming tool and hot spring center membership card, IT equipment
management, Internet bar.
Statement: Pictures above only show the product , the intellectual property rights of the logo owned by their trademark companies.
The ISO 15693 hotel rfid card from Texas Instruments is compliant with the ISO/IEC 15693 global standard for contactless integrated circuit cards operating at 13.56MHz .The card is base on TI's Tag-it smart label technology and allows interoperability of products from multiple manufacturers .With a user memory of 2K bits organized in 64 blocks ,the 13.56MHz card enables advanced solutions in a variety of markets ,including access control ,security,ticketing ,public transportation , production control ,warehouse management .etc This card be easily customized and personalized using standard thermo transfer printer . In aplications where the card needs to be used with a clip ,we recommend a pouch since punching a hole would destroy the product .In addtion to functionality defined in the ISO/IEC 15693 standard .the Ti-2K card also supports an extended set of command options ,providng more system flexibility .
| Product | ISO 15693 Ti-tag 2K Hotel RFID Card |
| Material | PVC, ABS, PET |
| Size | Stander size(credit card size):85.5*54*0.84mm or customized |
| Surface Finishing | Glossy/Matte/Frosted/Transparent |
| Printing | thermotransfer , tampon , silkscreen |
| Chips Option | Ti-tag 2K |

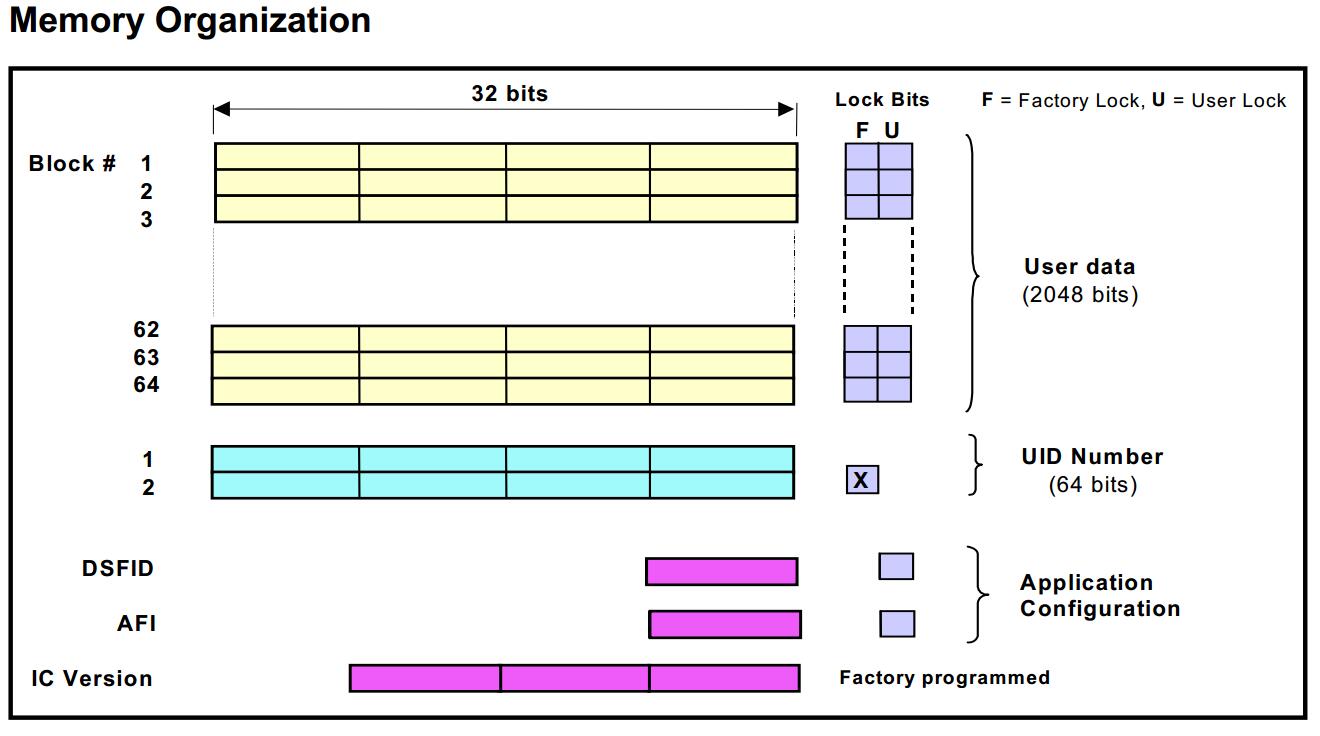

| Memory | 2k bits organized in 64x 32-bit blocks |
| Mechanical Stability (Bending ,Torsion) | according to ISO 10373 |
| Operating Temperature | -25°C to +50°C (according to ISO 7810) |
| Storage Temperature | -25°C to +50°C (according to ISO 7810) |
| Operating Frequency | 13.56MHz |
| Typical programming cycles(at +25°C) | 100,000 |
| Data retention time (at +55°C ) | > 10 years |
| Reading distance | 3-8cm |
| Personalization | Serial number, barcode, magnetic stripe, QR code, encoding, etc |
| Package | In smaller white box, then in carton |
| Shipment | By Express, by air, by sea |
| Application | event tickets , hotel card ,door control access ,etc .. |
