Model : ZXRHF0006
Material ; PVC , ABS or PET etc
Frequency : 13.56Mhz
Chip : NXP MIFARE Classic®1K
Size: 85.5*54mm , 0.84mm thickness
Color : offset printing full color or white without printing
Certificate ;RoHS
MOQ :1000pcs
Free samples testing is available
Functional Specification :
1: FEATURES
Contactless transmission of data and supply energy(no battery needed)
Operating distance : up to 100mm (depending on antenna geometry)
Operating frequency ; 13.56MHz
Fast data transfer ; 106kbit/s
High data integrity : 16Bit CRC ,parity,bit coding ,bit counting
True anticollision
Typical ticketing transaction : < 100 ms (including backup managment )
2： EEPROM
1 Kbyte ,organized in 16 sectors with 4 blocks of 16 bytes each (one block consist of 16 byte)
User definable access conditions for each memory block
Data retention of 10 years
Write endurance 100.000 cycels
3:Security
Mutual three pass authentication (ISO/IEC DIS 9798-2)
Data encryption on RF-channel with replay attack protection
Individual set of two keys per sector(per application) to support multi-application with key hierachy
Unique serail number for each device
Transport key protects access to EEPROM on chip delivery

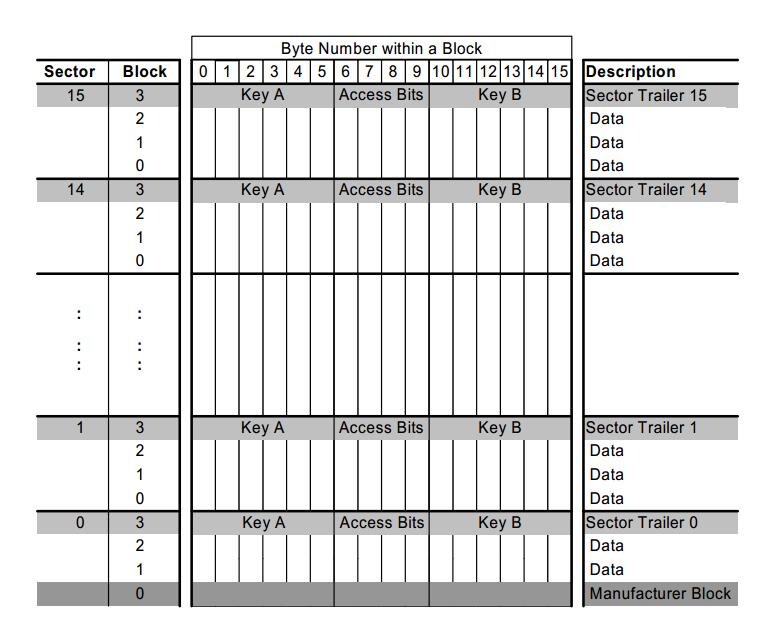

4: Memory Organization
What can our products do?
You may need our products if you are related with RFID Solution company, NFC solution company, Security
Company, Music or festival event company, IOT company, Smart Card manufacturer, RFID card or NFC card
company, NFC Tag company, rfid pet tag company, RFID System company, RFID Solution provider,etc.
Statement: Pictures above only show the product , the intellectual property rights of the logo owned by their trademark companies.

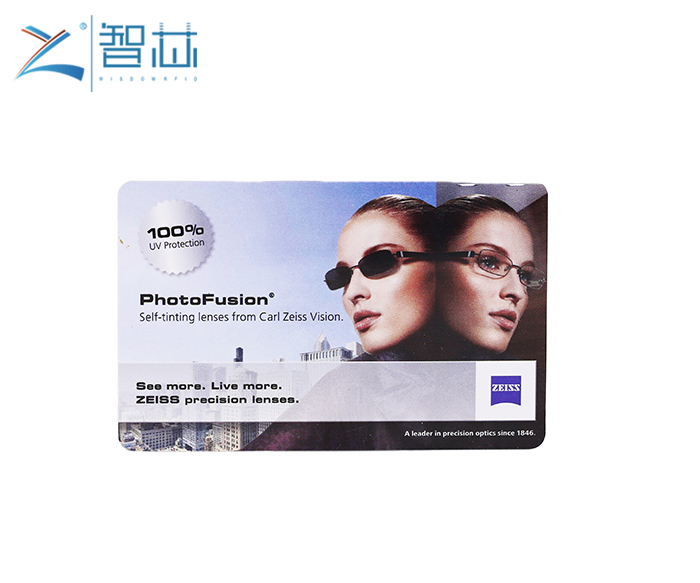

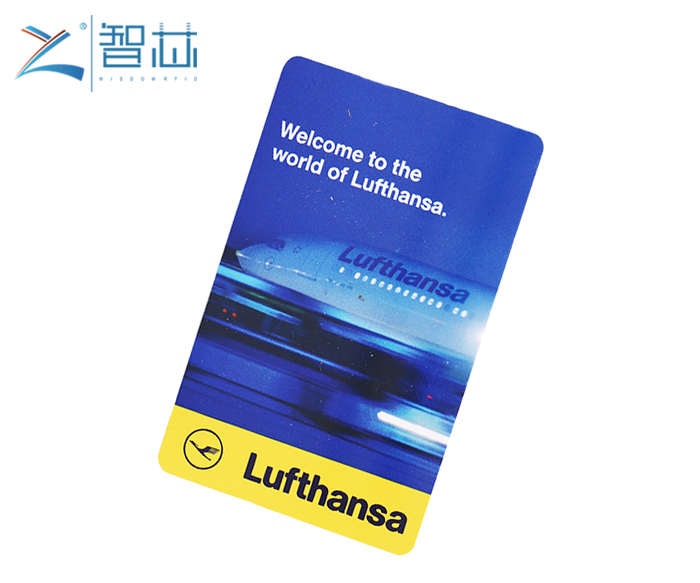

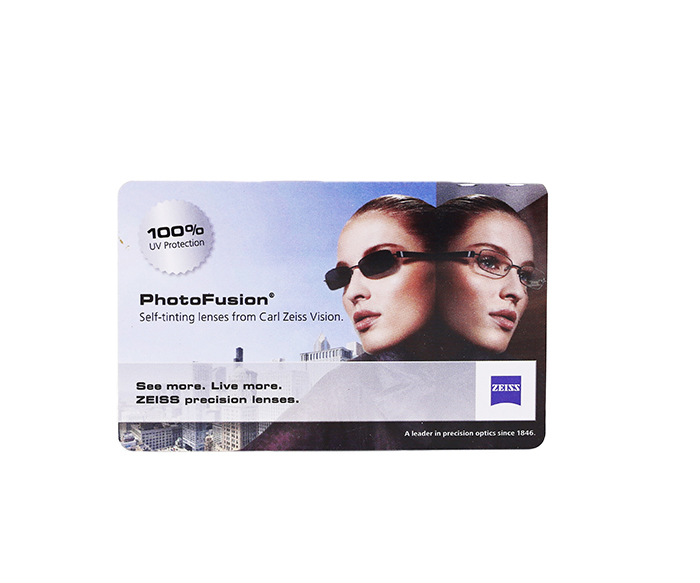

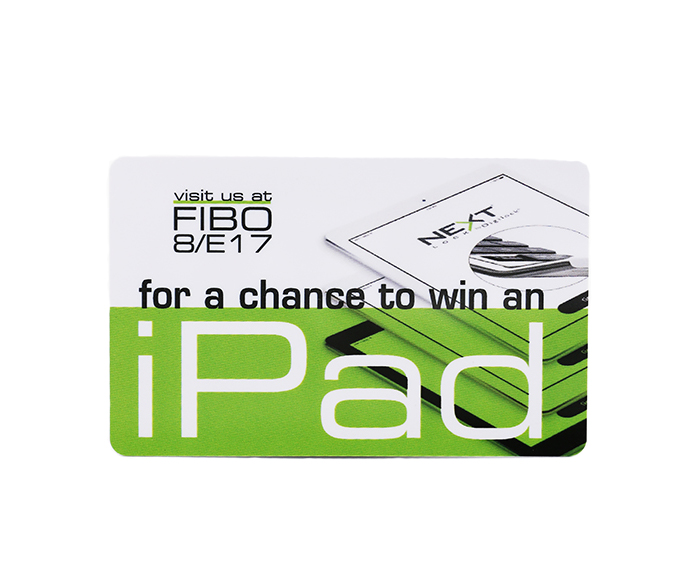

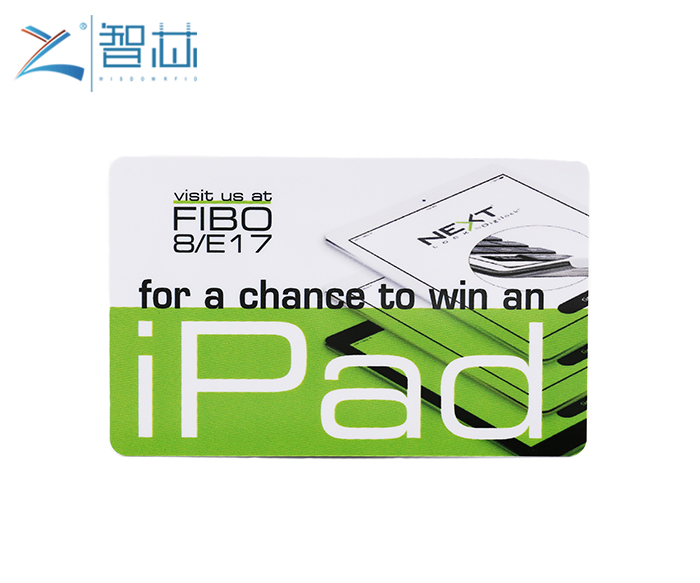

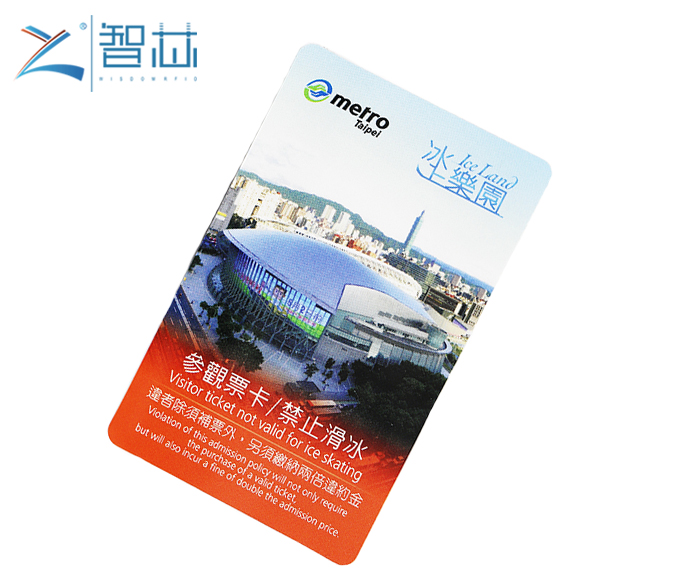

MIFARE Classic® 1K rfid card for door control access base on iso 14443a protocol and 13.56mhz frequency with MIFARE Classic® ICs . It widely use for door control accss, hotel card, school , payment , bus card , etc . As 16 sectors and can make MIFARE Classic® cards have many applications and one card can multi-application .
| Product | MIFARE Classic 1K RFID Card for Door Control Access |
| Material | PVC, ABS, PET |
| Size | Stander size(credit card size):85.5*54*0.84mm or customized |
| Surface Finishing | Glossy/Matte/Frosted/Transparent |
| Printing | Without printing, with lamination overlay |
| Chips Option | NXP MIFARE Classic®1k MIFARE Plus® S 2K / S 4K ,MIFARE Plus® X 2K / X 4K MIFARE Plus® X 2K / X 4K,MIFARE Ultralight® ICODE® SLIX, ICODE® SLIX-S, ICODE® SLIX-L, ICODE® SLIX 2 NTAG® 213,NTAG® 215,NTAG® 216 MIFARE® DESFire® EV1 2K/4K/8K NXP MIFARE Classic®4K are available |
| Memory | 1Kbyte ,4k byte ,,2Kbyte ,8k byte . 144bytes , etc |
| Reading distance | 3-8cm |
| Personalization | Serial number, barcode, magnetic stripe, QR code, encoding, etc |
| Package | In smaller white box, then in carton |
| Shipment | By Express, by air, by sea |
| Application | car parking , Electronic toll collection,Loyalty programs,etc |
Functional Specification :
1: FEATURES
Contactless transmission of data and supply energy(no battery needed)
Operating distance : up to 100mm (depending on antenna geometry)
Operating frequency ; 13.56MHz
Fast data transfer ; 106kbit/s
High data integrity : 16Bit CRC ,parity,bit coding ,bit counting
True anticollision
Typical ticketing transaction : < 100 ms (including backup managment )
2： EEPROM
1 Kbyte ,organized in 16 sectors with 4 blocks of 16 bytes each (one block consist of 16 byte)
User definable access conditions for each memory block
Data retention of 10 years
Write endurance 100.000 cycels
3:Security
Mutual three pass authentication (ISO/IEC DIS 9798-2)
Data encryption on RF-channel with replay attack protection
Individual set of two keys per sector(per application) to support multi-application with key hierachy
Unique serail number for each device
Transport key protects access to EEPROM on chip delivery
MIFARE and MIFARE Classic are registered trademarks of NXP B.V. and are used under licens
MIFARE and MIFARE Plus are registered trademarks of NXP B.V. and are used under license
MIFARE DESFire are registered trademarks of NXP B.V. and are used under license
MIFARE and MIFARE Ultralight are registered trademarks of NXP B.V. and are used under license.
ICODE® are registered trademarks of NXP B.V. and are used under license.
