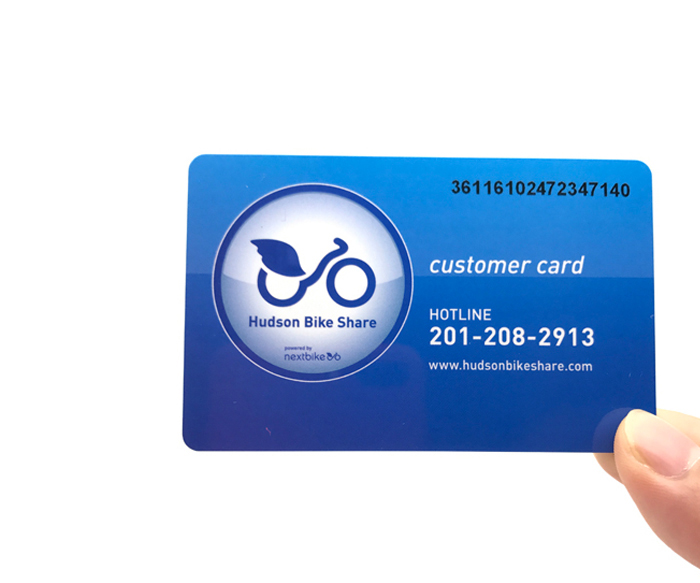

NXP I CODE SLIX S ISO15693 Printed RFID Card

NXP I CODE SLIX S ISO 15693 Printed RFID Card is base on ISO 15693 , 13.56mhz frequency dedicated chip for smart label ,smart card applications with the need for a higher security level , larger memory and /or a product which takes care of the increasing demand for perfect customer privacy. This kind of rfid product offers the possibility of operating labels simultaneously in the field of the reader antenna (anticollision) .It is designed for long range applications . For true anticollision and electronic article surveillance (EAS ) function our I CODE SLIX S RFID products widely use for libraries , pharamaceutical supply chains , asset and document tracking . Shenzhen Zhixin RFID Tag Co.,Ltd is offering original NXP serial chip and customized printing , serial number printing , die-cut shape , laser engrave , data encryption all are available .

1: FEATURES

Contactless transmission of data and supply energy (no battery needed)

Operating distance : Up to 1.5m (depending on antenna geometry) ,it will customize antenna and normall distance will 3-8cm

Operating frequency ; 13.56Mhz

Fast data transfer ; up to  53bits/s

High data integrity ; 16 bit CRC ,parity , bit coding ,bit counting

True anticollision

Electronic Article Surveillance(EAS)

Application Family Identifier(AFI) supported

Data Storage Format Identifier ( DSFID)

ENABLE PRIVACY command with 32-bit Privacy password

DESTROY SLIX-S command with 32-bit Destroy password

Additional fast anticollision read

Write distance equal to read distance

2: EEPROM

2048 bits (2KB) ,organized in 64 blocks of 4 bytes each , 4 blocks are summed up to 1page

Data retention of 50 years

Write endurance 100,000 cycels

3: Security

Unique identifier for each device

Lock mechanism for each user memory block(write protection)

Lock mechanism for DSFID ,AFI ,EAS

Password(32-bit) protected memory management for Read access

Password(32-bit) protected memory management for Write access

Password(32-bit)protected Label Destroy

Password(32-bit)protected Privacy Mode

Password(32-bit)protected EAS and AFI functionality

4.Application ;

Libraries

Item level tagging in pharmaceutical supply chains

Counterfeit protection for consumer goods

Indusstrial applications

Asset and document tracking

What is Anticollision

An intelligent anticollision function enables several tags to operate in the field simultaneously .The anticollision algorithm selects each tag individual

and ensures that the execution of a transaction with a selected tag is performed correctly without data corruption resulting from other tags in the

field.
