Model : ZXRHF0004
Material ; PVC , ABS or PET etc
Frequency : 13.56Mhz
Chip : NXP MIFARE DESFire® EV1 2K /4K/8K
Size: 85.5*54mm , 0.84mm thickness
Color : offset printing full color or white without printing
Certificate ;RoHS
MOQ :1000pcs
Free samples testing is available
Functional Specification :
1: FEATURES
Contactless transmission of data and powered by the RF-field(no battery needed)
Operating distance : up to 100 mm ( depending on power provided by the PCD and antenna geometry)
Operating frequency : 13.56Mhz
Fast data transfer: 106 kbit/s, 212 kbit/s, 424 kbit/s, 848 kbit/s
High data integrity: 16/32 bit CRC, parity, bit coding, bit counting
True deterministic anticollision
7 bytes unique identifier (cascade level 2 according to ISO/IEC 14443-3 and option for random ID)
Uses ISO/IEC 14443-4 protocol
2:Non-volatile memory
2 kB or 4 kB or 8 kB NV-Memory
Data retention of 10 years
Write endurance typical 500 000 cycles
3:NV-memory organization
Flexible file system
Up to 28 applications simultaneously on one PICC
Up to 32 files in each application (standard data file, back-up data file, value file, linear record file and cyclic record file)
File size is determined during creation
4:Security
Common Criteria Certification: EAL4+ (Hardware and Software)
Unique 7 bytes serial number for each device
Optional “RANDOM” ID for enhance security and privacy
Mutual three-pass authentication
Mutual authentication according to ISO/IEC 7816-4
1 card master key and up to 14 keys per application
Hardware DES using 56/112/168 bit keys featuring key version, data authenticity by 8 byte CMAC
Hardware AES using 128-bit keys featuring key version, data authenticity by 8 byte CMAC
Data encryption on RF-channel
Authentication on application level
Hardware exception sensors
Self-securing file system
Backward compatibility to MF3ICD40: 4 byte MAC, CRC 16
5:Special features
Transaction-oriented automatic anti-tear mechanism
Configurable ATS information for card personalization
6:Applications
Advanced public transportation schema
Highly secure access management
Closed-loop e-payment scheme
Event ticketing
eGovernment applications
What can our products do?
You may need our products if you are related with RFID Solution company, NFC solution company, Security
Company, Music or festival event company, IOT company, Smart Card manufacturer, RFID card or NFC card
company, NFC Tag company, rfid pet tag company, RFID System company, RFID Solution provider,etc.

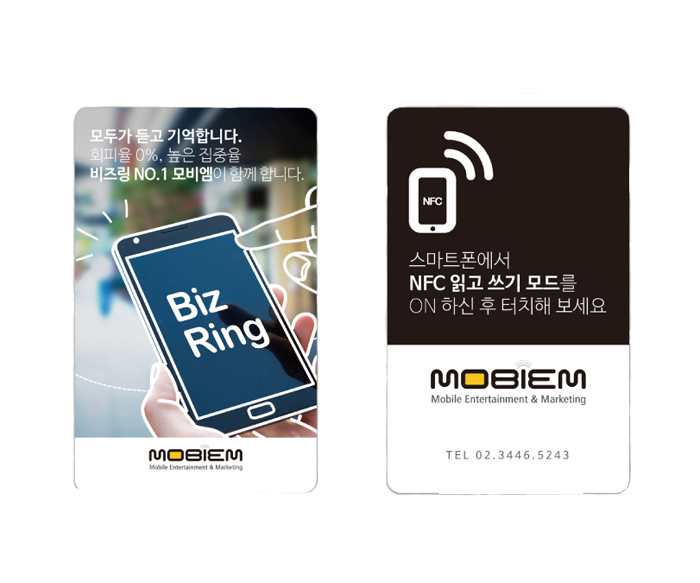

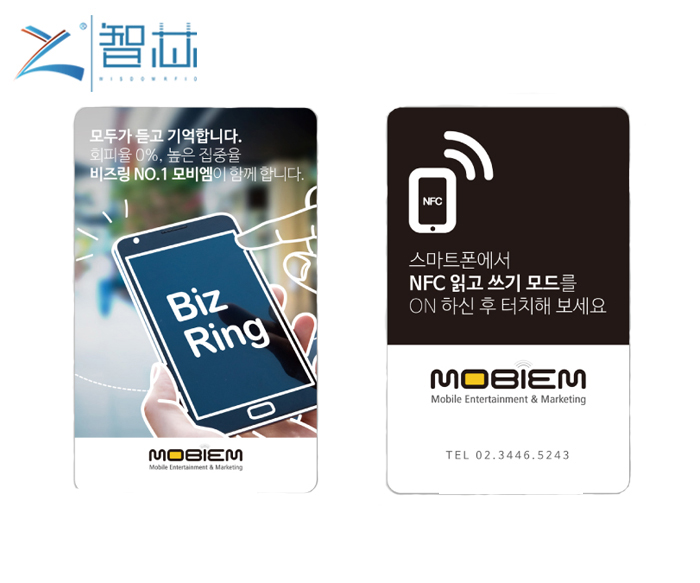

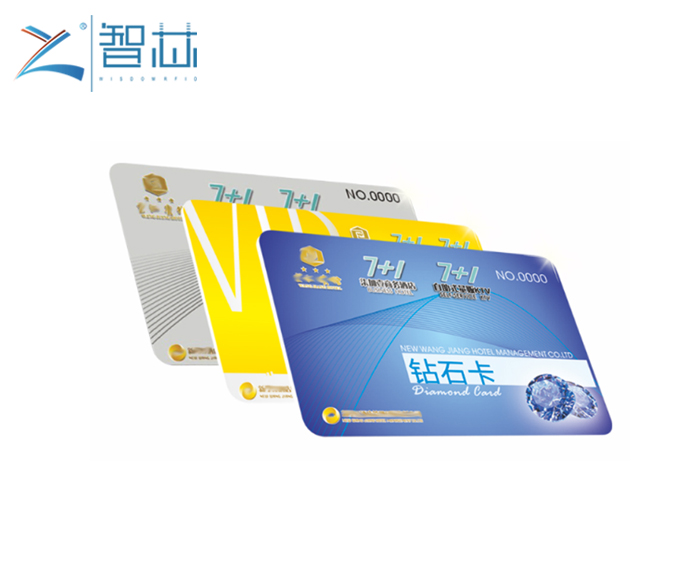

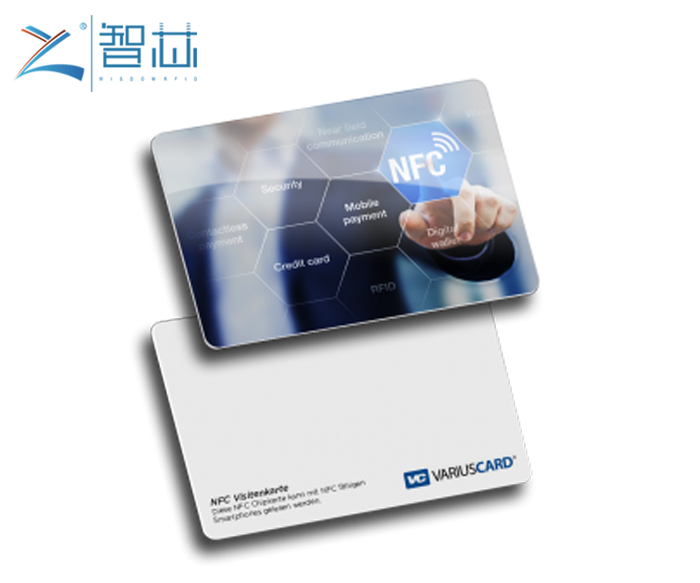

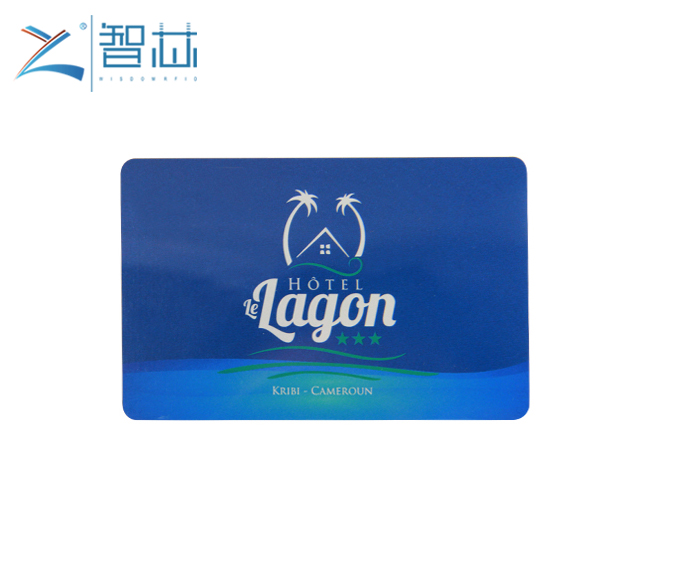

Statement: Pictures above only show the product , the intellectual property rights of the logo owned by their trademark companies.
Printable high security MIFARE DESFire® 13.56mhz rfid smart card is base on iso 14443a protocol and 13.56mhz frequency with MIFARE DESfire® serial ICs , it has high security and uses 3DES or AES hardware cryptographic engine for enciphering transmission data , a common criteria (EAL4+) certified product ,is deal for service providers wanting to use secure multi-application smart cards in public transport schemes , access management or closed-loop e payment applications ,It is fully complies with the requirements for fast and high secure data transmission .flexible memory organization with existing infrastructure .
| Product | Printable High Security MIFARE DESFire 13.56mhz RFID Smart Card |
| Material | PVC, ABS, PET |
| Size | Stander size(credit card size):85.5*54*0.84mm or customized |
| Surface Finishing | Glossy/Matte/Frosted/Transparent |
| Printing | Without printing, with lamination overlay |
| Chips Option | MIFARE® DESFire® EV1 2K/4K/8K NXP MIFARE Classic®4K NXP MIFARE Classic®1k , MIFARE Plus® S 2K / S 4K ,MIFARE Plus® X 2K / X 4K MIFARE Plus® X 2K / X 4K,MIFARE Ultralight® ICODE® SLIX, ICODE® SLIX-S, ICODE® SLIX-L, ICODE® SLIX 2 NTAG® 213,NTAG® 215,NTAG® 216 are available |
| Memory | 4k byte , 1Kbyte ,2Kbyte ,8k byte . 144bytes , etc |
| Reading distance | 3-8cm |
| Personalization | Serial number, barcode, magnetic stripe, QR code, encoding, etc |
| Package | In smaller white box, then in carton |
| Shipment | By Express, by air, by sea |
| Application | event tickets , egovernment applications ,high security card .etc |
Functional Specification :
1: FEATURES
Contactless transmission of data and powered by the RF-field(no battery needed)
Operating distance : up to 100 mm ( depending on power provided by the PCD and antenna geometry)
Operating frequency : 13.56Mhz
Fast data transfer: 106 kbit/s, 212 kbit/s, 424 kbit/s, 848 kbit/s
High data integrity: 16/32 bit CRC, parity, bit coding, bit counting
True deterministic anticollision
7 bytes unique identifier (cascade level 2 according to ISO/IEC 14443-3 and option for random ID)
Uses ISO/IEC 14443-4 protocol
2:Non-volatile memory
2 kB or 4 kB or 8 kB NV-Memory
Data retention of 10 years
Write endurance typical 500 000 cycles
3:NV-memory organization
Flexible file system
Up to 28 applications simultaneously on one PICC
Up to 32 files in each application (standard data file, back-up data file, value file, linear record file and cyclic record file)
File size is determined during creation
4:Security
Common Criteria Certification: EAL4+ (Hardware and Software)
Unique 7 bytes serial number for each device
Optional “RANDOM” ID for enhance security and privacy
Mutual three-pass authentication
Mutual authentication according to ISO/IEC 7816-4
1 card master key and up to 14 keys per application
Hardware DES using 56/112/168 bit keys featuring key version, data authenticity by 8 byte CMAC
Hardware AES using 128-bit keys featuring key version, data authenticity by 8 byte CMAC
Data encryption on RF-channel
Authentication on application level
Hardware exception sensors
Self-securing file system
Backward compatibility to MF3ICD40: 4 byte MAC, CRC 16
5:Special features
Transaction-oriented automatic anti-tear mechanism
Configurable ATS information for card personalization
6:Applications
Advanced public transportation schema
Highly secure access management
Closed-loop e-payment scheme
Event ticketing
eGovernment applications
