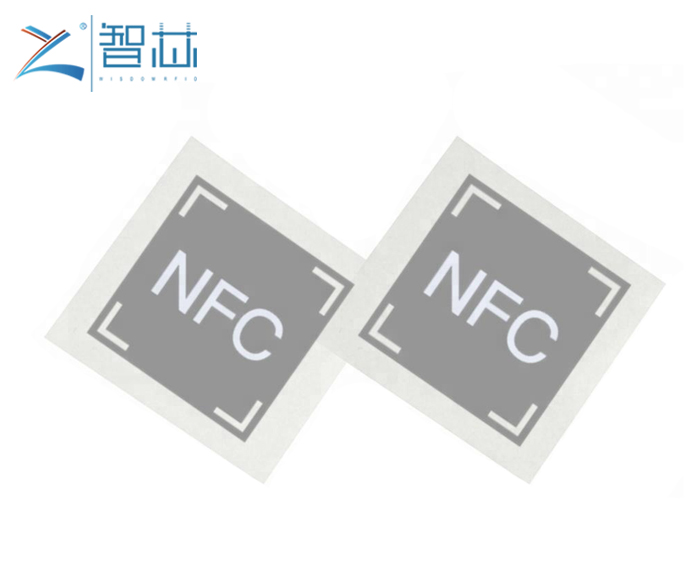

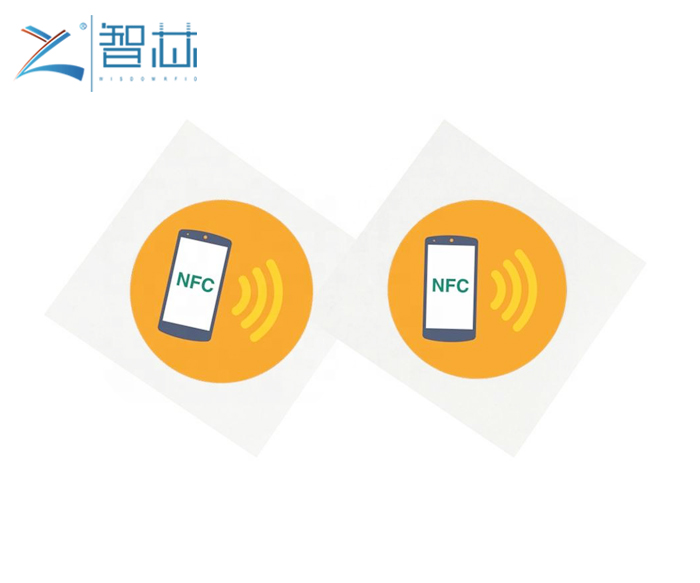

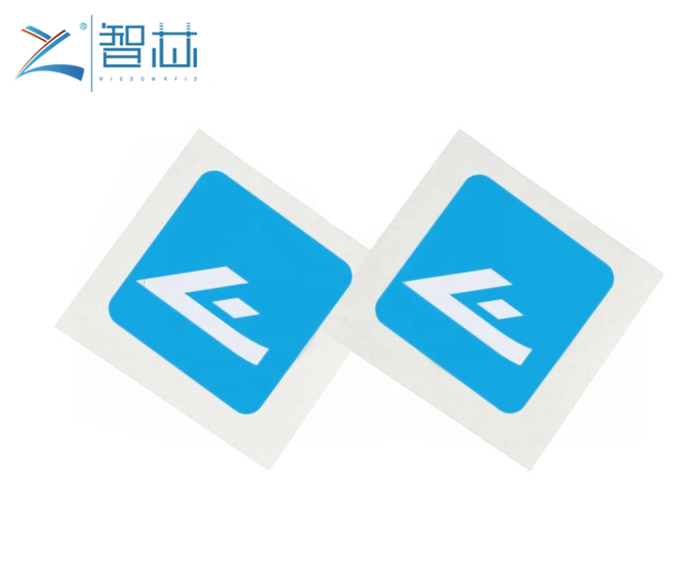

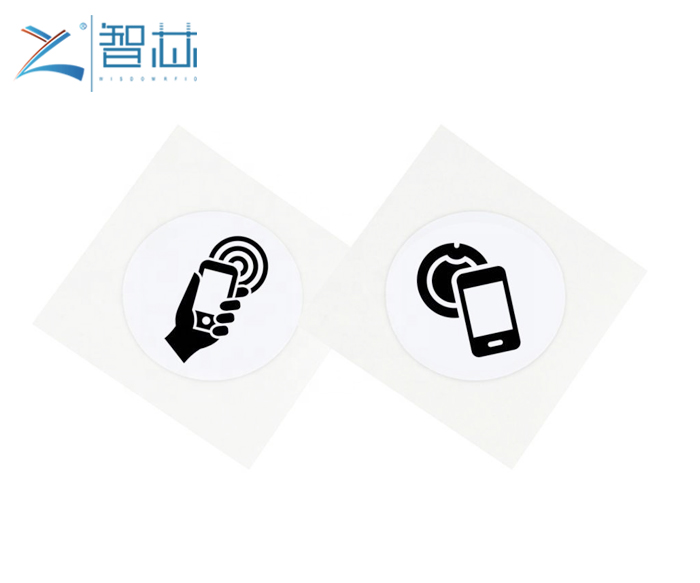

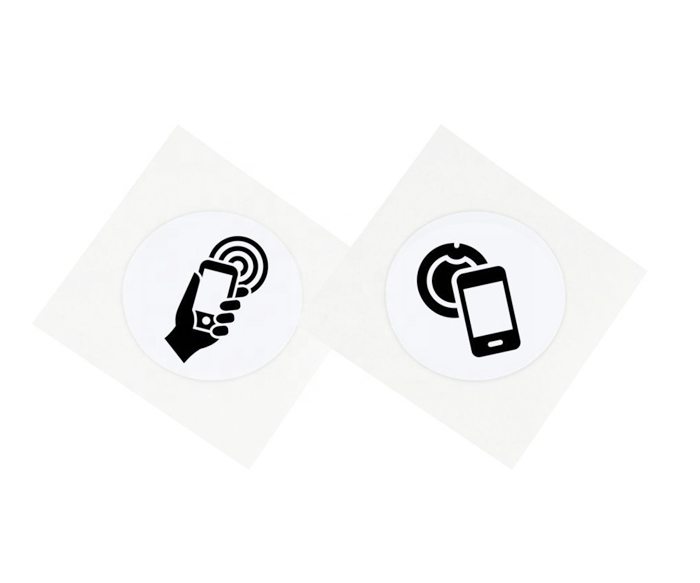

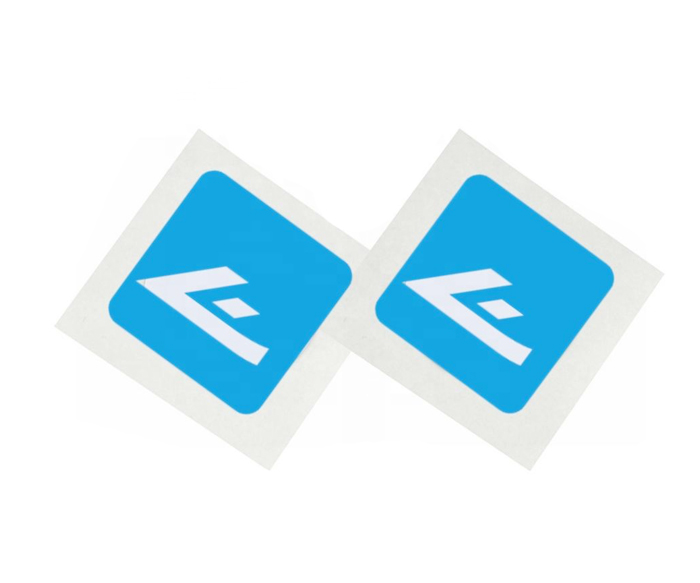

Security DESFire EV1 2K HF 13.56Mhz RFID Sticker Label Customized Size Passive RFID Stickers

MIFARE DESFire EV1/EV2 13.56Mhz HF rfid sticker will use high security and big memory chip for producing , they are widely use for high security application such as financial ,cashless payment , bank and some important assets management . You can print full color with logo , serial number  or customized shape and size . stronger adhesive and can be normal application and work on metal application with anti-metal layer .

Features overview

RF interface: ISO/IEC 14443 Type A

• Contactless interface compliant with ISO/IEC 14443-2/3 A

• Low Hmin enabling operating distance up to 100 mm (depending on power provided by the PCD and antenna geometry)

• Fast data transfer: 106 kbit/s, 212 kbit/s, 424 kbit/s, 848 kbit/s

• 7 bytes unique identifier (option for Random ID)

• Uses ISO/IEC 14443-4 transmission protocol

• Configurable FSCI to support up to 128 bytes (256 bytes for 16 and 32 kB) frame size

Non-volatile memory

• 2 kB, 4 kB, 8 kB, 16 kB or 32 kB NV • Data retention of 25 years

• Write endurance typical 500 000 cycles

• Fast programming cycles (erase/write)

Security

• Common Criteria certification: EAL5+ (Hardware and Software)

• Unique 7 bytes serial number for each device

• Optional "RANDOM" ID for enhance security and privacy

• Mutual three-pass authentication

• Mutual authentication according to ISO/IEC 7816-4

• Flexible key management: 1 card master key and up to 14 keys per application

• Hardware DES using 56/112/168 bit keys featuring key version

• Hardware AES using 128-bit keys featuring key version

• Data authenticity by 8 byte CMAC

• Data encryption on RF-channel

• Authentication on application level

• Hardware exception sensors

• Self-securing file system

• Backward compatibility to MF3ICD40: 4 byte MAC, CRC 16

New features on MIFARE DESFire EV2

• MIsmartApp (Delegated Application Management)

• Memory reuse in DAM applications (Format Application)

• Transaction MAC on application level

• Multiple Key Sets per application with fast key rolling mechanism (up to 16 sets)

• Accessing files from any two applications during a single transaction

• Multiple keys assignments for each file access right (up to 8)

• Virtual Card Architecture for enhanced card/application selection on multi-VC devices with privacy protection • Proximity Check for protection against Relay Attacks

• Originality Check for proof of genuine NXP’s product

• New EV2 Secure Messaging based on AES (similar with MIFARE Plus’s secure messaging)

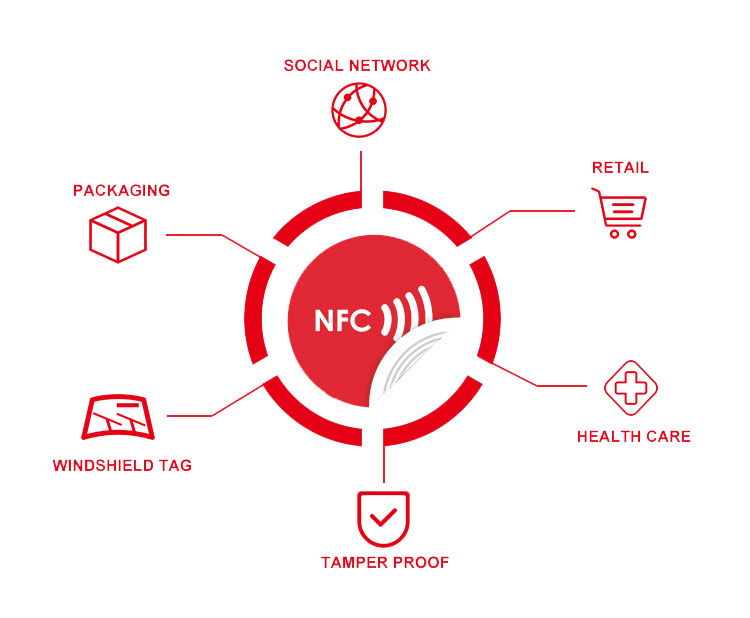

Applications

Secure public transport ticketing

• Multi-application smart city and mobility card

 • Secure access management

• Micro-payment and Loyalty

• Student ID

• Road tolling and parking

• Hospitality

• Event ticketing

Why Chose US

1: We have our own factory and avoid any reseller for saving cost and directly benifits for customers

2: All RFID products we have approved testing certificates and experienced to ship to USA , Europe  ,South America ,Africa ,and Asia areas .

3: Strictly in quality control and excellence in printing

FAQ

1: Would you are manufacturer or reseller for these kind of RFID products

-  We are manufacturer in Shenzhen city of China and our headquater is card factory for 17 years experience and also have invested RFID / NFC labels factory .

2: Would you manufacture another rfid chip cards

-  Yes , we are also producing many kinds of rfid chip in now popular rfid market , widely use for e-payment , door control access , hotel management , hospital  , etc .

3: How about your export experience for RFID products

-  We have worked with USA , Europe , South America , Asia  customers and all products are working good after we get feedbacks from our clients

4: How about your payment term

-  We can accpet TT , Western Union , Paypal  or L/C  ,it will depend on quantites of projects

5: Normally production time or leadtime

-  10-12 working days and some special complicated rfid products will fix leadtime with our engineers .

6: How about shipping

-  We can arrange courier such as DHL , FedEx , UPS or TNT ,  seafreight and truck ,etc . It will depend on customer 's requested and trade term in contract .

7: What the difference with RFID and NFC

-  RFID is widely technology than NFC and includes LF ,HF and UHF  ,  NFC only for 13.56MHz chips and specailizing in shorter reading distance in e-payment .

8: What else we should provide before ordering

-   You can send us vector ( not only jpg picture ) file such as Adobe Illustrator , PSD or PDF  we can re-edit file and fonts inside for our printing publish and also should

tell us how about your rfid products application , quantities ,  frequency ,  chips etc  if we can get full information can help us to make right price for you and comeptitive

9：Would you offer free samples

-   You can ask for free samples for testing and shipping cost collection  ,  if customized printing or size , shape will take sample making cost  .

10: How can we chose right rfid or nfc chip for our rfid cards or rfid sticker label

-   Firstly you should let us know what kind of application you will work with nfc card or nfc sticker ,our professional sales can suggest you or make the better solution for you

on your project .

11: How can we read or program our nfc card or sticker label nfc

-   You can use ACR 122U nfc reader to read your nfc card ( normally you should install the driver and sales will send you SDK for your own engineer or system manager to

develop your own system for matching your application , simple read and encoding data you also can use NFC enable phone such as Huawei ,  OPPO or Samsung to work . almost now all android phone has nfc function inside .

12:  Can you help us to customize package

- Of course we can . we can provide customer paper cardboard with blister pacakge ,  poster card package ,envelop etc .. all will have MOQ from package factory and take extra cost .

13:   Pricing

- All of our rfid product will meaasure price according to customer quantities , techniques ,  material , package , etc .  Do not judge lowest price and comparing with some small factories . we believe that quality ,services will match certain pricing for market and factory well running .

MIFARE and MIFARE Classic are registered trademarks of NXP B.V. and are used under licens

MIFARE and MIFARE Plus are registered trademarks of NXP B.V. and are used under license

MIFARE DESFire are registered trademarks of NXP B.V. and are used under license

MIFARE and MIFARE Ultralight are registered trademarks of NXP B.V. and are used under license.

ICODE® are registered trademarks of NXP B.V. and are used under license.

We are willing to work with you and any interested projects or questions please feel free to contact us with info@zxrfid.com  or jimmy@zxrfid.com
