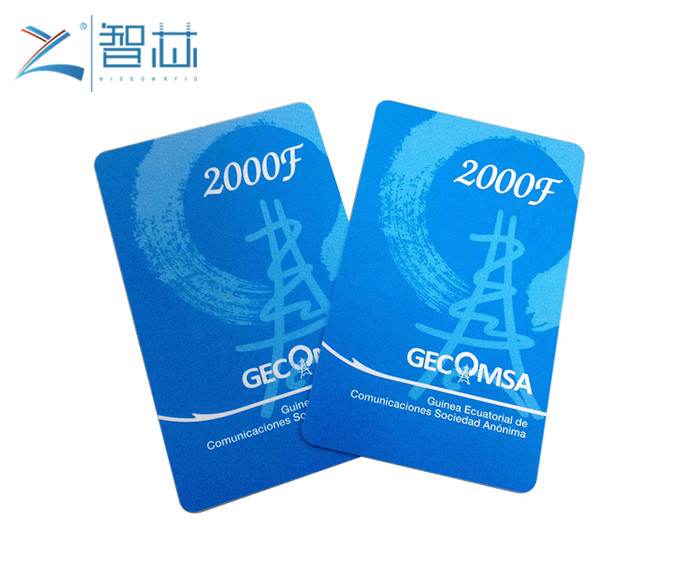

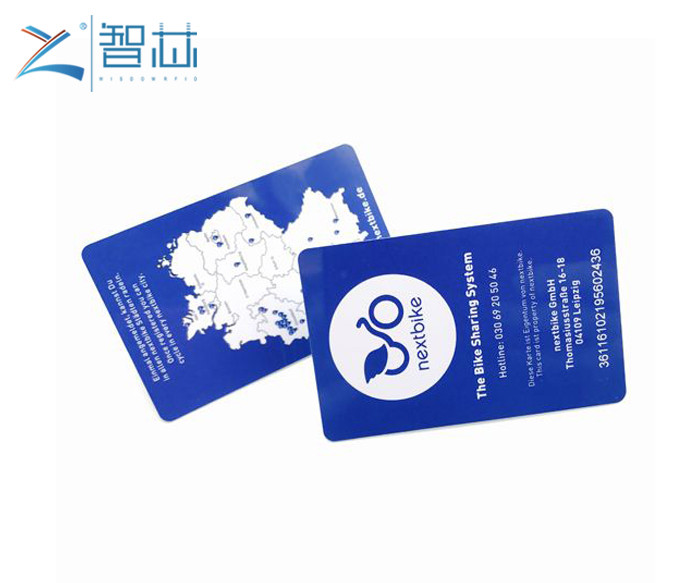

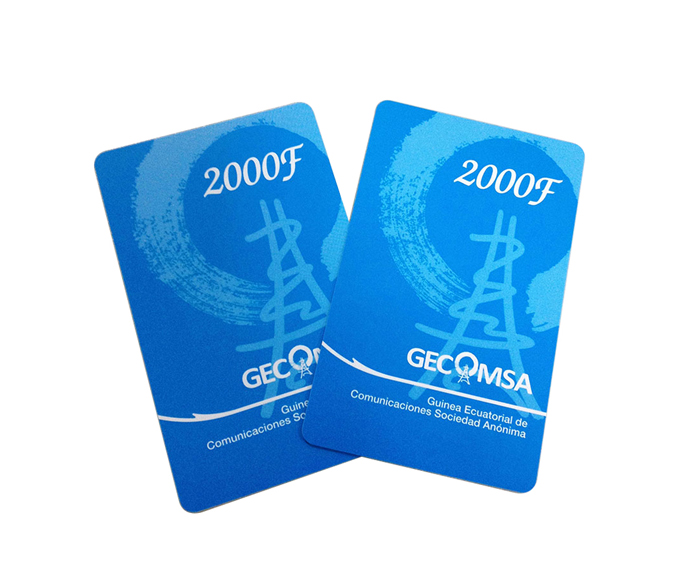

Low Frequency 125KHz TK4100 Chip RFID Printed ID Cards

Model : ZXRLF0004

Material ; PVC , ABS or PET etc

Frequency : 125KHz

Chip : TK4100

Size:   85.5*54mm , 0.84mm thickness

Color : offset printing full color or white without printing

Certificate ;RoHS

MOQ :1000pcs

Free samples testing is available


  • Product
  • Parameter

LF RFID Card

LF RFID Card

LF RFID Card

LF RFID Card

LF RFID Card


Features :

64 bit memory array electrically programmable

Wide dynamic range due to on chip buffer capacitance and voltage limiter on chip.

Full wave rectifier on chip

Big modulation depth due to a low impedance modulation device

Very small chip size convenient for implantation

Large distance even without resonance capacitor

No external buffer capacitance needed due to low power consumption

On chip resonant capacity


Application :

Industrial transponder

Animal transponder

ID Cards

Serial Number Identification ROM

LF RFID Card

LF RFID Card


Low Frequency 125KHz TK4100 Chip RFID Printed ID Cards

Low Frequency 125KHz TK4100 Chip RFID Printed ID Cards

LF RFID Card

What can our products do?

You may need our products if you are related with RFID Solution company, NFC solution company, Security

Company, Music or festival event company, IOT company, Smart Card manufacturer, RFID card or NFC card

company, NFC Tag company, rfid pet tag company, RFID System company, RFID Solution provider,etc.

LF RFID Card


Statement: Pictures above only show the product , the intellectual property rights of the logo owned by their trademark companies.

LF RFID Card


TK4100 RFID ID Cards is kind of low frequency 125KHz RFID ICs and good performance in door control access , animal transponder and industrial transponder , It will competitive cost and total compatible with EM 4100 and EM 4200 chip . You can match different size of copper coil antenna and produce customized shape ID cards or tags .


ProductLow Frequency 125KHz TK4100 Chip RFID Printed ID Cards
MaterialPVC, ABS, PET
SizeStander size(credit card size):85.5*54*0.84mm or customizedClamshell LF card will 1.8mm thickness
Surface FinishingGlossy/Matte/Frosted/Transparent
Printingoffset printing ,silkscreen printing
Chips OptionTK 4100, EM 4200, EM 4305, T5577, HID, HITAG 1, HITAG 2, HITAG S, etc
Memory64bits , 128bits , 330bits ,2kbits . 256bits .etc
Reading distance3-8cm
PersonalizationSerial number, barcode, magnetic stripe, QR code, encoding, etc
PackageIn smaller white box, then in carton
ShipmentBy Express, by air, by sea
ApplicationDoor control access , identification , hotel card , member card etc ..


Features :

64 bit memory array electrically programmable

Wide dynamic range due to on chip buffer capacitance and voltage limiter on chip.

Full wave rectifier on chip

Big modulation depth due to a low impedance modulation device

Very small chip size convenient for implantation

Large distance even without resonance capacitor

No external buffer capacitance needed due to low power consumption

On chip resonant capacity


Application :

Industrial transponder

Animal transponder

ID Cards

Serial Number Identification ROM
