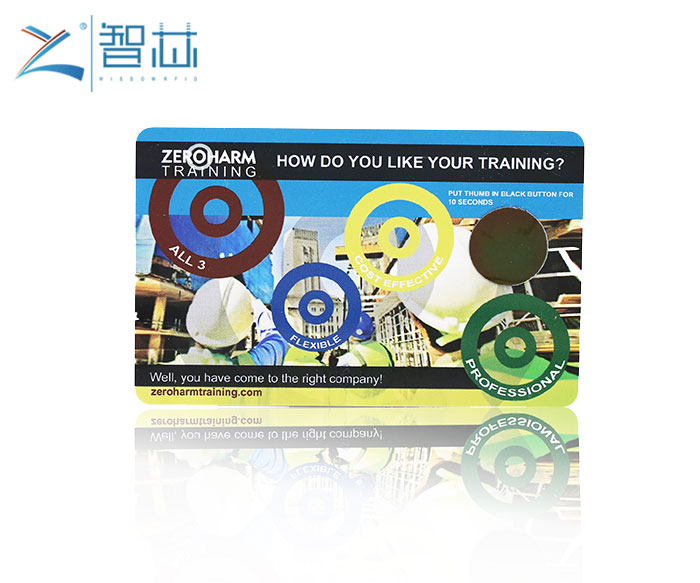

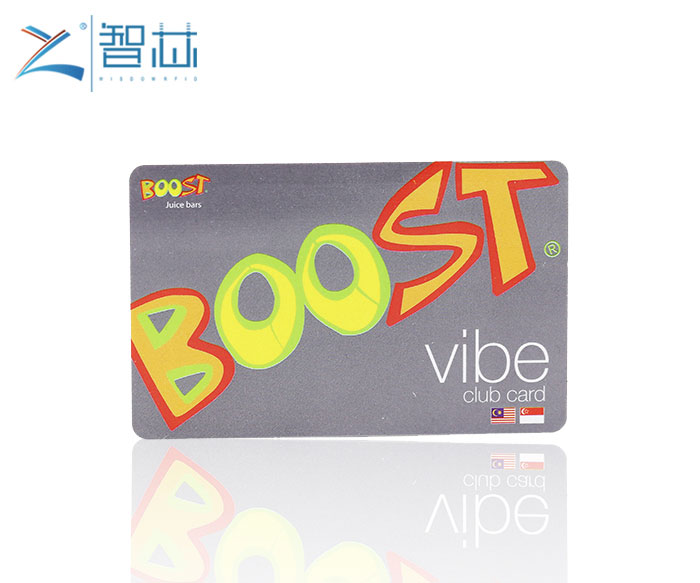

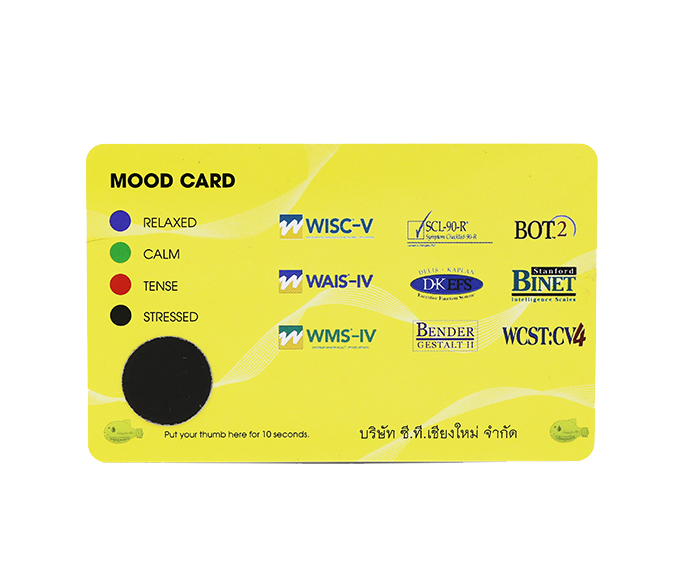

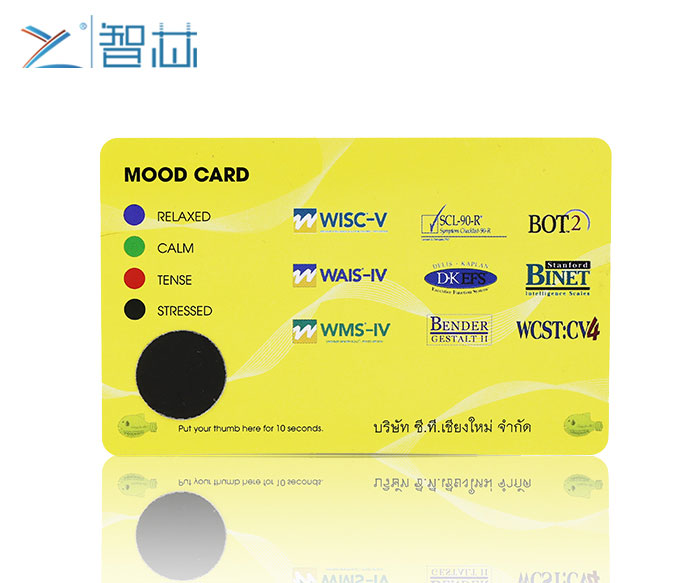

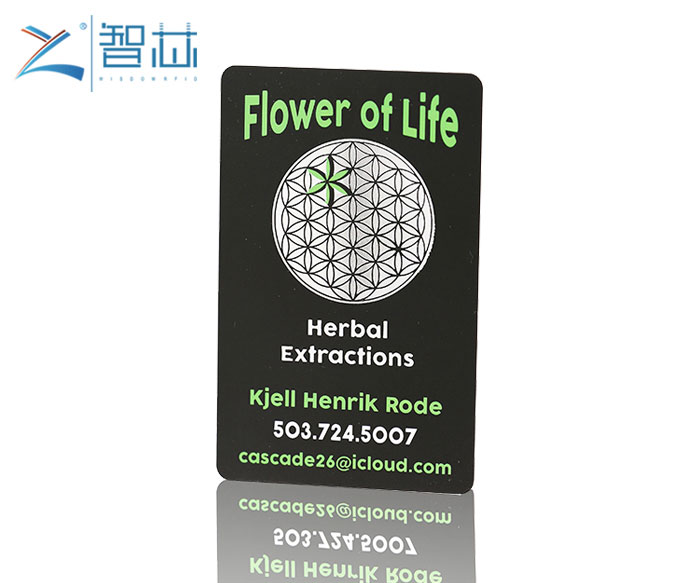

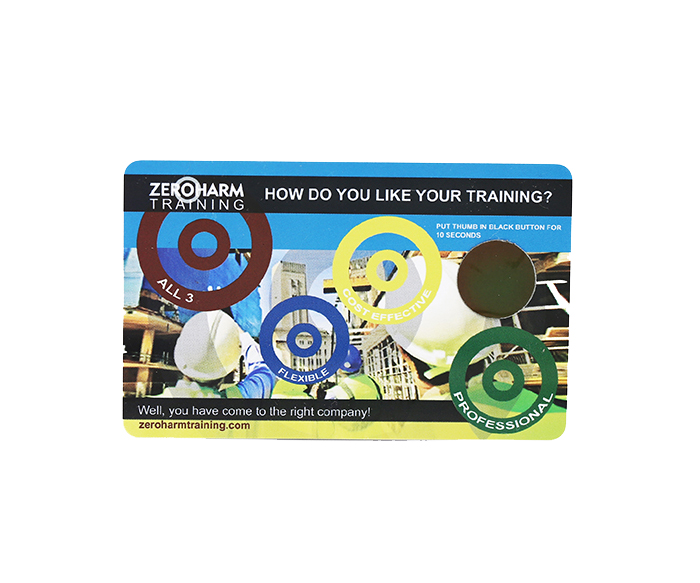

Large Memory NFC Business Card with NTAG 216 Chip

NTAG216 has been developed by NXP Semiconductors as standard NFC tag ICs to be used in mass market applications such as retail, gaming and consumer electronics, in combination with NFC devices or NFC compliant Proximity Coupling Devices. NTAG 216 is designed to fully comply to NFC Forum Type 2 Tag and ISO/IEC14443 Type A specifications. We can help you to produce as rfid card ,rfid label ,rfid wristband with NTAG 216 chips .

Features

Contactless transmission of data and supply energy

Operating frequency of 13.56 MHz

Data transfer of 106 kbit/s

Data integrity of 16-bit CRC, parity, bit coding, bit counting

Operating distance up to 100 mm (depending on various parameters as e.g. field strength and antenna geometry)

7-byte serial number (cascade level 2 according to ISO/IEC 14443-3)

UID ASCII mirror for automatic serialization of NDEF messages

Automatic NFC counter triggered at read command

NFC counter ASCII mirror for automatic adding the NFC counter value to the NDEF message

ECC based originality signature

Fast read command

True anticollision

50 pF input capacitance

EEPROM

924 bytes organized in 231 pages with 4 bytes per page

888 bytes freely available user Read/Write area (222 pages)

4 bytes initialized capability container with one time programmable access bits

Field programmable read-only locking function per page for the first 16 pages

Field programmable read-only locking function above the first 16 pages per double page for NTAG215 and NTAG216

Configurable password protection with optional limit of unsuccessful attempts

Anti-tearing support for capability container (CC) and lock bits

ECC supported originality check

Data retention time of 10 years

Write endurance 100,000 cycles

Target Applications

Smart advertisement

Goods and device authentication

Call request

SMS

Call to action

Voucher and coupons

Bluetooth or Wi-Fi pairing

Connection handover

Product authentication

Mobile companion tags

Electronic shelf labels

Business cards

Security

Manufacturer programmed 7-byte UID for each device

Pre-programmed Capability container with one time programmable bits

Field programmable read-only locking function

ECC based originality signature

32-bit password protection to prevent unauthorized memory operations

NFC Forum Tag 2 Type compliance

NTAG21x IC provides full compliance to the NFC Forum Tag 2 Type technical specification and enables NDEF data structure configurations.

Anticollision

An intelligent anticollision function allows to operate more than one tag in the field simultaneously. The anticollision algorithm selects each tag individually and ensures that the execution of a transaction with a selected tag is performed correctly without interference from another tag in the field.
