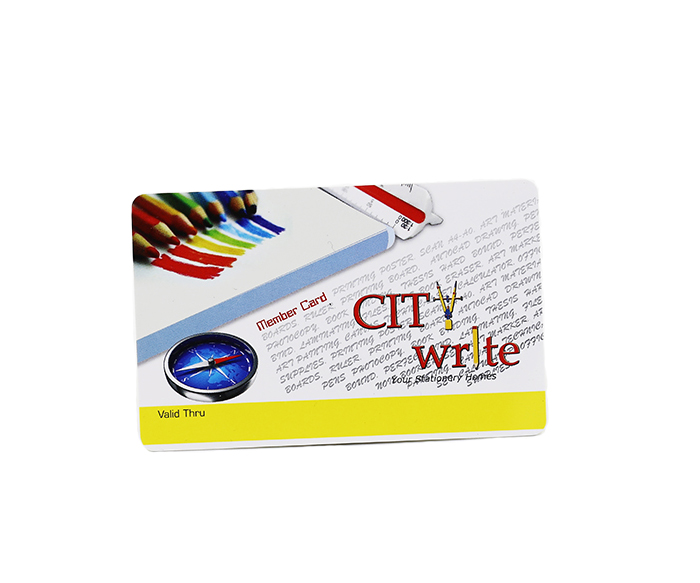

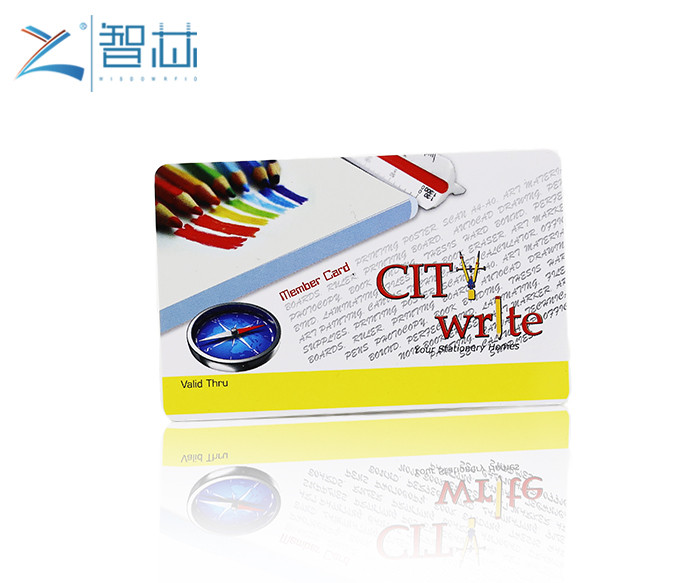

Long Reading Distance 860-960MHz Alien H3 RFID UHF Card

Model : ZXRUHF0002

Material ; PVC , ABS or PET etc

Frequency : 860-960Mhz

Chip :  Alien H3

Size:   85.5*54mm , 0.84mm thickness

Color : offset printing full color or white without printing

Certificate ;RoHS

MOQ :1000pcs

Free samples testing is available

  • Product
  • Parameter

Gen 2 Class 1 and 18000-6C 860-960Mhz UHF Card

Long Reading Distance 860-960MHz Alien H3 RFID UHF Card

Long Reading Distance 860-960MHz Alien H3 RFID UHF Card

Long Reading Distance 860-960MHz Alien H3 RFID UHF Card

Long Reading Distance 860-960MHz Alien H3 RFID UHF Card

Long Reading Distance 860-960MHz Alien H3 RFID UHF Card

Long Reading Distance 860-960MHz Alien H3 RFID UHF Card

Long Reading Distance 860-960MHz Alien H3 RFID UHF Card

Long Reading Distance 860-960MHz Alien H3 RFID UHF Card

Long Reading Distance 860-960MHz Alien H3 RFID UHF Card

Long Reading Distance 860-960MHz Alien H3 RFID UHF Card


Wide range of application:

FRID has wide application: Highway tolls, Car parking, Pigeon ring, Animal ear tag, Hotel card, Restaurant

consumption, Library card, Staff photo id card, Patrol, Fairground, Electronoic bills, Metro Card, Bus

card, Freight transport, Bath center, swimming tool and hot spring center membership card, IT equipment management, Internet bar.

Gen 2 Class 1 and 18000-6C 860-960Mhz UHF Card

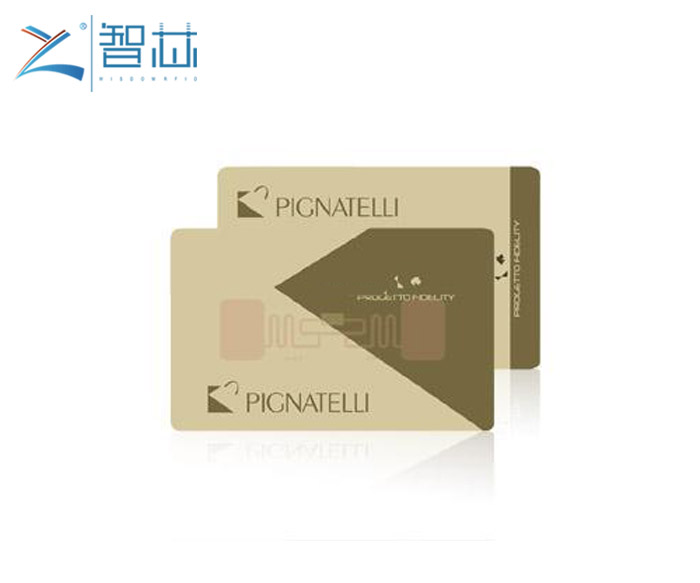

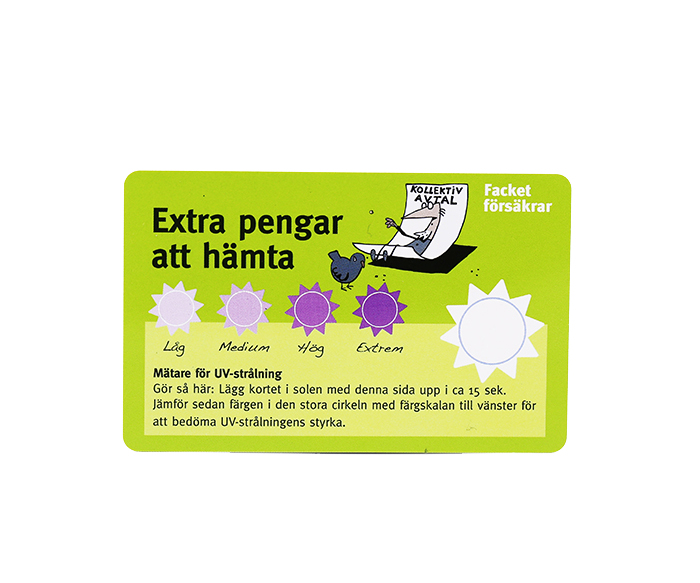

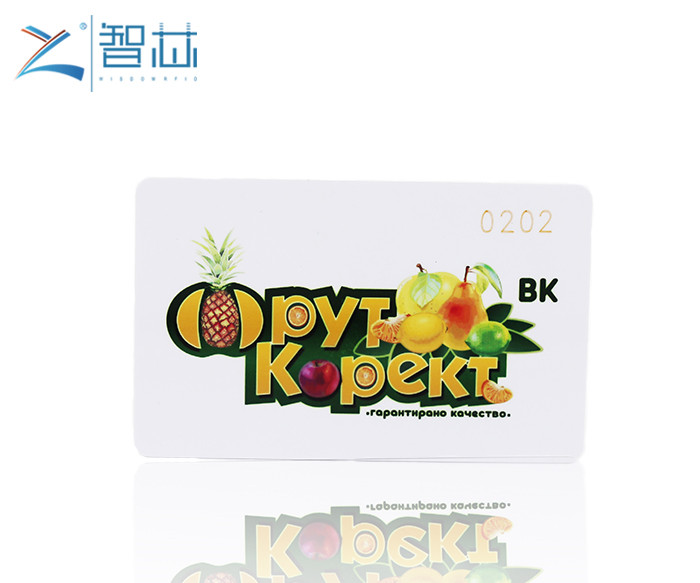

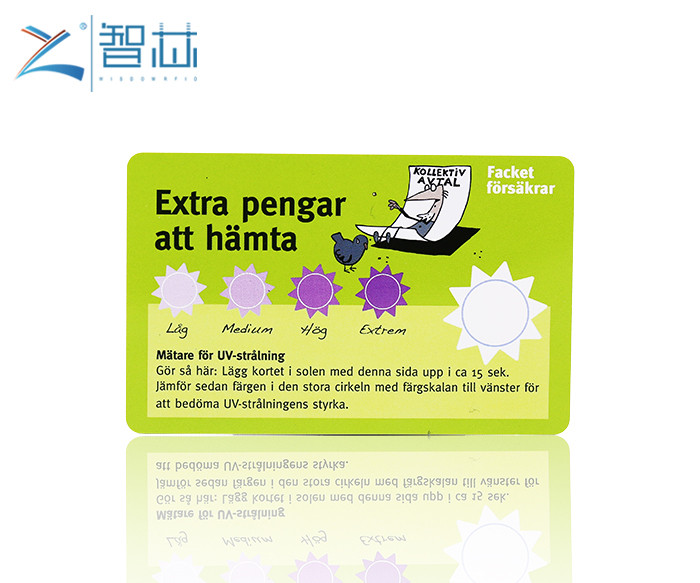

Statement: Pictures above only show the product , the intellectual property rights of the logo owned by their trademark companies.

Gen 2 Class 1 and 18000-6C 860-960Mhz UHF Card

860-960MHz Alien H3 rfid card is ultra high frequency and widely reading distance , they can use for warehouse management ,supply chain management ,distribution logistics,product authentication,asset inventory and tracking ,etc . Customized size and shape are available ,also can offer customer color printing ,serial number ,engraving ,  barcode . magnetic strip .etc . This kind of chip card confrms to the EPC global Class 1 Gen 2 specifications and state of the art performance for broad range of applications .


ProductLong Reading Distance 860-960MHz Alien H3 RFID UHF Card

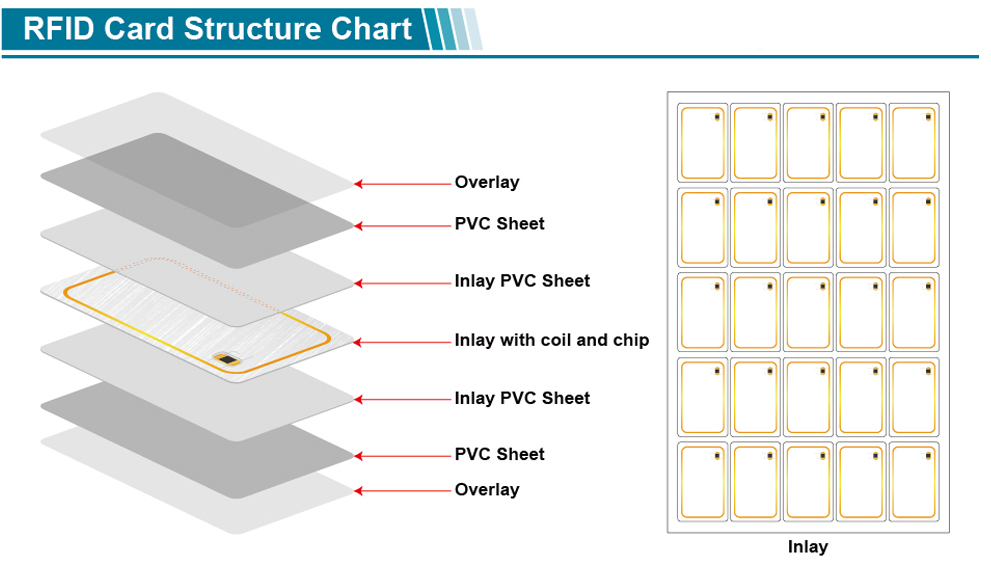

MaterialPVC, ABS, PET
SizeStander size(credit card size):85.5*54*0.84mm or customized
Surface FinishingGlossy/Matte/Frosted/Transparent
PrintingWithout printing, with lamination overlay

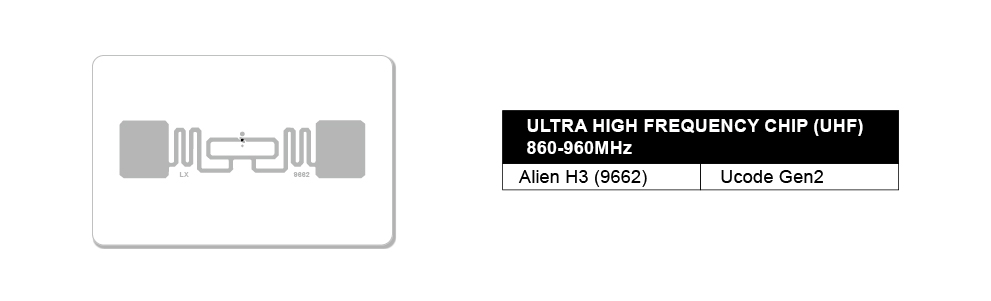

Chips OptionH3.
Memory512bits
Reading distance1-3meter (depends on antenna size and reader power )
PersonalizationSerial number, barcode, magnetic stripe, QR code, encoding, etc
PackageIn smaller white box, then in carton

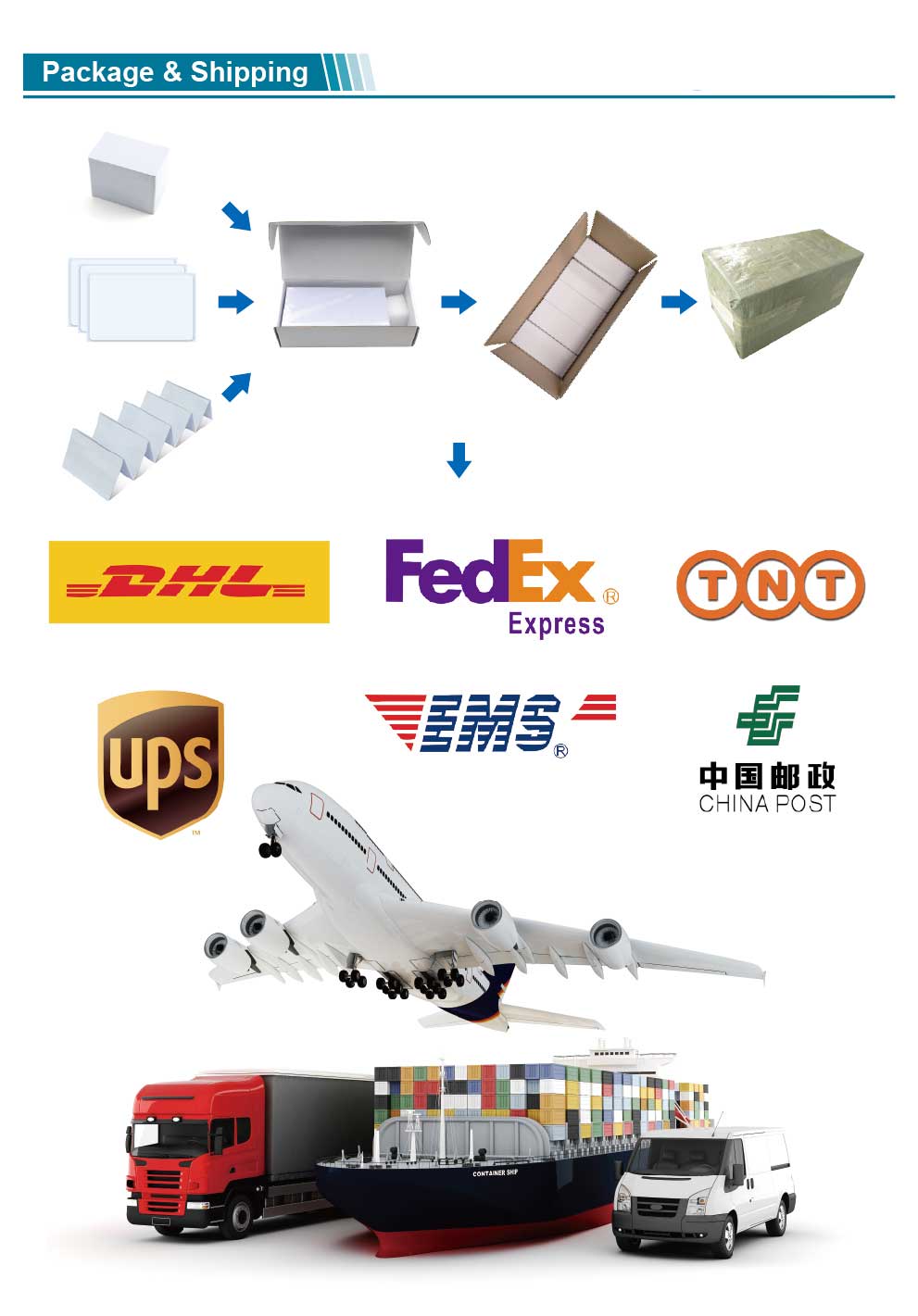

ShipmentBy Express, by air, by sea
ApplicationLogistic , warehouse management ,supply chain management ,inventory and tracking ,etc


Features :

Meets EPCglobal Gen2 as well as ISO/IEC 18000-6C

Worldwide operation in RFID UHF bands ( 60-960MHz)

   800-Bits of Nonvolatile Memory

   96-EPC bits ,extensible to 480bits

   512 user bits

   64 bits unique TID

   32 bit access and 32 bit kill passwords

Pre-Programmed with a unique , unalterable 64 bit serial number

User Moemory can be Block Perma-locked as well as read password protected in 64 btis blocks

Supports all Mandatory and Optional commands including Item level coomands

Custom commands for high speed programming : 30 tags per second for the 96 bits EPC number

Low power operation for both read and program

Exceptional operating range : up to 10m with appropriate antenna .
